XD-MAX Winch for Drone

XD-MAX 150 Kg Capacity Winch for Industrial Drones

Industrial drone winch is a high-performance, heavy-duty payload solution designed for industrial drones requiring exceptional load-carrying capabilities. Engineered with precision and innovation, this drone winch system is ideal for demanding applications such as emergency rescue, logistics delivery, industrial inspections, construction support, and agricultural operations. With a maximum load capacity of 150kg and a rope length of 25 meters, the battery powered drone winch ensures safe, precise, and efficient payload deployment while maintaining operational flexibility.

The XD-MAX series is a specialized lifting solution designed for helicopters and heavy-lift aerial platforms. It supports third-party control integration and customizable development, making it ideal for demanding aerial transport and deployment missions requiring high payload capacity and operational flexibility.

Control Interface：

SBUS / PWM / Remote Control: Standard

RS232 / RS422: Optional (Custom Integration)

CAN Communication: Optional (Custom Integration)

150 KG Capacity Payload Winch Smart Safety Functions:

• ·   Electric Release System (electric release hook only) – Enables precise, wireless mid-air cargo release.

• ·   Anti-Twist Design – Prevents rope entanglement during lifting and lowering operations.

• ·   One-Touch Cargo Release & Lift – Simplifies operation with quick, reliable controls.

• ·   Emergency Rope Cut-Off – Instantly severs the rope in critical situations for safety.

• ·   Auto Hook Release upon Ground Contact (electric release hook only) – Automatically disengages the hook when touching down.

• ·   Automatic Rope Management – Standard 30m cable with regulated winding for consistent handling.

• ·   Night Navigation Lights – Equipped with dual aviation lights for improved visibility during low-light operations.

• ·   Safe Stop at Top – Automatically slows ascent before reaching the maximum limit to protect the mechanism.

• ·   Upper & Lower Limit Stops – Stops winding/unwinding at preset points for safety and precision.

• ·   Power Failure Braking – Locks the winch automatically to prevent unintended cargo release.

• ·   Real-Time Tension Monitoring – Continuously tracks rope tension to ensure safe lifting conditions.

• ·   Swing Detection – Monitors rope sway, direction, and speed to enhance load stability in flight.

Operational Notes

1. Do not use the fuse-cut function unless in an emergency. A dedicated test mode is available to verify servo motor movement without heating the fuse wire.

2. During heavy-lift testing, with the standard 30m rope, ensure no more than 3 meters remain inside the winch to avoid compression damage to the inner spool layers.

3. To close the electric release hook correctly, press the switch, wait for the servo activation sound, then manually lock the hook.

4. For ground testing of the one-touch cargo release, maintain a minimum height of 1.5 meters.

5. The outer shell is constructed from high-strength molded housing, providing enhanced durability and wear resistance.

Industrial-Grade XD-MAX Drone Winch Performance:

◆ Ultra-High Load Capacity: Designed to lift up to 150kg, the XD-MAX is one of the most powerful industrial drone winches on the market, making it suitable for heavy-duty applications.

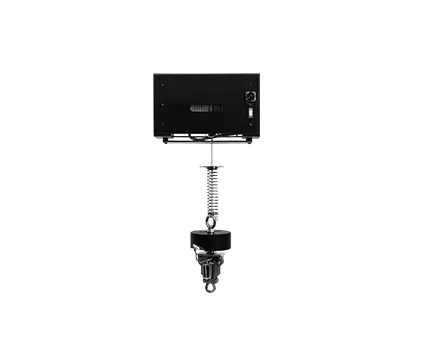

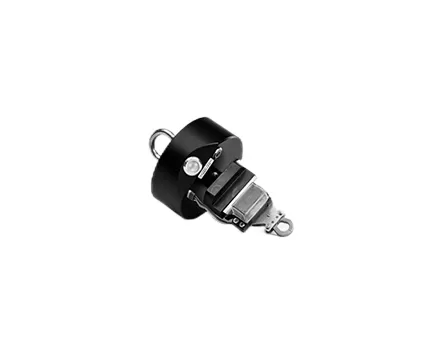

◆ Smart Auto-Release Device: Equipped with an intelligent auto-release mechanism, the heavy load drone winch allows for seamless payload deployment without manual intervention, enhancing operational efficiency and safety.

◆ Multiple Control Modes: Supports SBUS, PWM, RS232/422, and optional CAN communication protocols, ensuring compatibility with a wide range of drone systems. This flexibility makes it easy to integrate into existing or new drone platforms.

◆ Durable & Reliable: Features a robust motor with a speed range of 32-128 RPM and a retraction speed of 0.1-0.4m/s, ensuring smooth and consistent performance even under demanding conditions.

◆ Energy Efficiency: With a full load rated power of 400W and hover power consumption of less than 20W, the remote controlled winch for drone optimizes energy usage for longer operational durations.

◆ User-Friendly Design: Includes one-click release, anti-reverse winding, automatic unhooking, and load warning indicators (green, yellow, red lights), simplifying operations and minimizing user error.

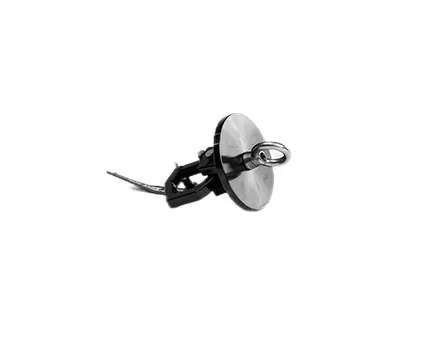

◆ Customizable Options: Available with optional mechanical release devices and smart auto-release devices, allowing users to tailor the system to specific mission requirements.

◆ Industrial-Quality Materials: Constructed with high-strength, corrosion-resistant materials to ensure longevity and reliability in harsh environments.

◆ Wide Voltage Compatibility: Operates on a power supply voltage of 44-52V, ensuring compatibility with various battery systems and power sources.

Industrial drone winch applications

◆ Emergency Rescue: Deploy heavy rescue equipment such as ropes, lifebuoys, medical supplies, and heavy rescue tools in disaster zones, floods, or remote areas.

◆ Logistics Delivery: Facilitate heavy payload deliveries for last-mile logistics, industrial supply chains, and remote location support.

◆ Industrial Inspections: Support payload deployment for inspections of infrastructure, pipelines, and other industrial assets.

◆ Construction & Mining: Transport tools, samples, and equipment for construction sites and mining operations.

◆ Military & Defense: Deploy supplies, equipment, and surveillance tools in challenging terrains and operational environments.

◆ Agriculture & Farming: Assist in the delivery of heavy agricultural equipment, seeds, fertilizers, and monitoring devices for precision agriculture applications.
