Which Winch For Drone Applications Offers The Best Reliability?

Drones have become important tools in industries such as logistics, agriculture, emergency rescue, infrastructure inspection, filmmaking, and construction. As drone applications continue to expand, operators increasingly need reliable systems for lowering, lifting, delivering, or retrieving payloads without requiring the drone to land.

A drone winch is a mechanical lifting device installed on a UAV to control the movement of a suspended payload. It allows the drone to hover above a target area while the cable lowers or retrieves equipment, supplies, tools, sensors, or other cargo.

Selecting the right winch can significantly affect flight stability, payload safety, delivery accuracy, and overall mission success. Electric, hydraulic, and pneumatic winches each offer different advantages, but their reliability depends on the drone platform, payload weight, operating environment, control method, and safety requirements.

This article compares the main winch options for drone applications and explains which type generally provides the best reliability.

Electric Winches

Electric winches are the most commonly used option for drone applications because they are relatively compact, easy to control, and convenient to integrate with UAV power and control systems.

An electric motor drives the winch drum, allowing the cable to raise or lower a payload. Operators can control the direction and speed through a remote controller, flight-control interface, or ground control station.

One of the main advantages of an electric winch is precise movement control. The motor can start, stop, raise, or lower the payload in response to electronic commands, making it suitable for applications that require accurate positioning and smooth delivery. Electric winches are widely valued for controlled movement, adjustable operation, and relatively straightforward maintenance.

Electric winches are also easier to install on most commercial and industrial drones because they do not require a separate hydraulic pump or compressed-air source. A purpose-built drone winch can be connected to the UAV battery or an independent power supply, depending on the system design.

The main reliability advantages of electric drone winches include:

• ◆  Accurate lifting and lowering control

• ◆  Compact and relatively lightweight construction

• ◆  Easy integration with drone control systems

• ◆  Adjustable retraction speed

• ◆  Remote operation

• ◆  Lower maintenance requirements

• ◆  Compatibility with automatic release devices

• ◆  Support for load, tension, and operating-status monitoring

However, an electric winch must be properly matched to the drone’s voltage, current capacity, and payload limit. An oversized motor or poorly selected power supply can reduce flight time or interfere with the aircraft’s electrical system.

For most standard drone delivery, inspection, rescue, and material-handling applications, a purpose-built electric winch offers the best balance of reliability, controllability, weight, and integration flexibility.

Hydraulic Winches

Hydraulic winches are known for their high pulling capacity, strong torque, and ability to operate under demanding loads. They use pressurized hydraulic fluid to drive the winch motor and are widely used on cranes, recovery vehicles, marine equipment, and heavy industrial machinery.

Compared with many electric systems, hydraulic winches can be particularly effective in continuous-duty applications involving heavy loads. Their high power-to-size ratio and robust performance make them reliable for demanding industrial operations.

For drone applications, however, hydraulic winches present several challenges.

A complete hydraulic system may require a hydraulic pump, fluid reservoir, control valves, hoses, fittings, and additional support components. These parts add weight and increase the complexity of installation and maintenance.

Any additional weight carried by the drone reduces the remaining capacity available for cargo. Hydraulic fluid leakage, hose damage, pressure loss, and maintenance requirements can also affect system reliability.

Hydraulic winches may be suitable for very large unmanned aircraft or specialized heavy-lift aerial platforms that already have a hydraulic power system. However, they are generally not the most practical option for conventional multirotor drones.

Therefore, hydraulic winches provide excellent pulling power, but their weight and system complexity usually make them less suitable than electric winches for standard UAV applications.

Pneumatic Winches

Pneumatic winches use compressed air to power the winch motor. They are commonly used in industrial, marine, mining, oil and gas, and hazardous environments where electrical sparks may create a safety risk.

Because an air-powered winch does not rely on a conventional electric motor, it can offer spark-resistant operation in environments containing flammable gases, vapors, or materials. Pneumatic winches are also known for durable construction and reliable performance in harsh industrial conditions.

For drone applications, the main limitation is the need for a compressed-air source. The drone would need to carry an air tank, compressor, valves, and related components or remain connected to an external air supply.

This arrangement can increase system weight and reduce the flight time and payload capacity of the UAV. It also makes the system more difficult to integrate into a compact airborne platform.

Pneumatic winches may still be considered for highly specialized operations where spark resistance is the primary requirement. However, for most commercial drone applications, an electric winch provides a more practical and efficient solution.

Wireless Control Systems

The type of winch is not the only factor affecting reliability. The control system also plays an important role in safe and accurate drone operations.

A wireless control system enables the operator to raise, lower, stop, or release the payload remotely. Depending on the winch design, commands may be transmitted through a dedicated radio-frequency controller, the drone’s remote-control system, or a ground control station.

Wireless control allows operators to adjust the winch without approaching the aircraft or suspended load. This can improve safety in rescue areas, construction sites, restricted zones, mountainous terrain, and other difficult operating environments.

A reliable control system should provide:

• ◆  Stable command transmission

• ◆  Immediate start and stop response

• ◆  Clear operating-status feedback

• ◆  Sufficient communication range

• ◆  Protection against accidental commands

• ◆  A defined response if communication is lost

• ◆  Compatibility with the drone’s existing control architecture

Some basic systems may use Bluetooth for setup or short-range operation. However, professional drone missions usually require a more dependable control method with sufficient range, interference resistance, and fail-safe logic.

Where possible, the winch should be integrated with the drone's flight controller or ground station. This allows the operator to coordinate aircraft position, payload movement, cable length, and release timing more effectively.

Integrated Safety Features

When selecting a winch for drone applications, integrated safety features are a critical consideration. Components such as overload protection, emergency stop controls, and automatic braking systems not only enhance reliability but also significantly reduce the risk of accidents or equipment damage. Even a well-designed motor and gearbox cannot provide dependable operation if the system cannot respond to overloads, power loss, cable problems, or communication failure.

Overload Protection

Overload protection prevents the winch from operating beyond its safe lifting capacity.

The actual force on the cable may temporarily exceed the static payload weight because of wind, aircraft movement, sudden acceleration, or the payload becoming caught on an obstacle. A load-monitoring or tension-detection system can warn the operator or stop the winch before the motor, cable, or drone is damaged.

Emergency Stop

An emergency stop function allows the operator to halt the winch immediately if the payload begins to swing, the cable becomes tangled, or an unexpected obstacle appears.

The stop command should respond quickly and hold the load securely rather than allowing the cable to continue moving.

Automatic Braking

An automatic braking or self-locking mechanism prevents the suspended payload from falling when the motor stops or electrical power is interrupted.

This is one of the most important reliability features for an airborne winch. A system that depends entirely on motor power to hold the load may create a serious risk if the voltage drops or the power connection fails.

Upper and Lower Limits

Upper and lower limit functions help prevent excessive cable movement.

The upper limit stops the winch before the hook or release device is pulled into the winch body. The lower limit prevents the system from paying out more cable than the drum can safely provide.

Cable Management

A reliable cable-management mechanism helps the rope wind evenly across the drum. It reduces the risk of overlapping, loose winding, reverse winding, or cable jamming.

This is particularly important for drones because wind and aircraft movement can cause the cable to enter the winch at different angles.

Emergency Payload Release

In some applications, operators may need to release the payload if it becomes trapped or begins to affect flight safety.

An emergency release or rope-cutting function can help protect the aircraft when retaining the suspended load creates a greater risk than releasing it. This function should only be used under controlled procedures and in accordance with applicable operating regulations.

Which Winch Offers the Best Reliability?

Electric, hydraulic, and pneumatic winches can all provide reliable performance when used in appropriate environments.

Hydraulic winches are powerful and suitable for continuous heavy-duty operation, but their supporting components add weight and complexity. Pneumatic winches provide advantages in spark-sensitive environments but require a compressed-air supply that is difficult to accommodate on most drones.

For the majority of commercial and industrial drone applications, a purpose-built electric drone winch offers the best overall reliability.

Electric drone winches are generally more suitable because they combine:

• ◆  Precise payload control

• ◆  Relatively low system weight

• ◆  Convenient electrical integration

• ◆  Multiple control options

• ◆  Adjustable lifting speed

• ◆  Lower maintenance requirements

• ◆  Automatic release compatibility

• ◆  Integrated braking and overload protection

The final selection should still be based on the drone’s payload capacity, winch weight, cable length, lifting speed, voltage, control interface, operating environment, and required safety features.

Choose a Reliable Payload Winch for Your Drone

When a drone must lower cargo accurately without landing, a general-purpose industrial winch may not provide the weight control, communication compatibility, or safety functions required for aerial operation.

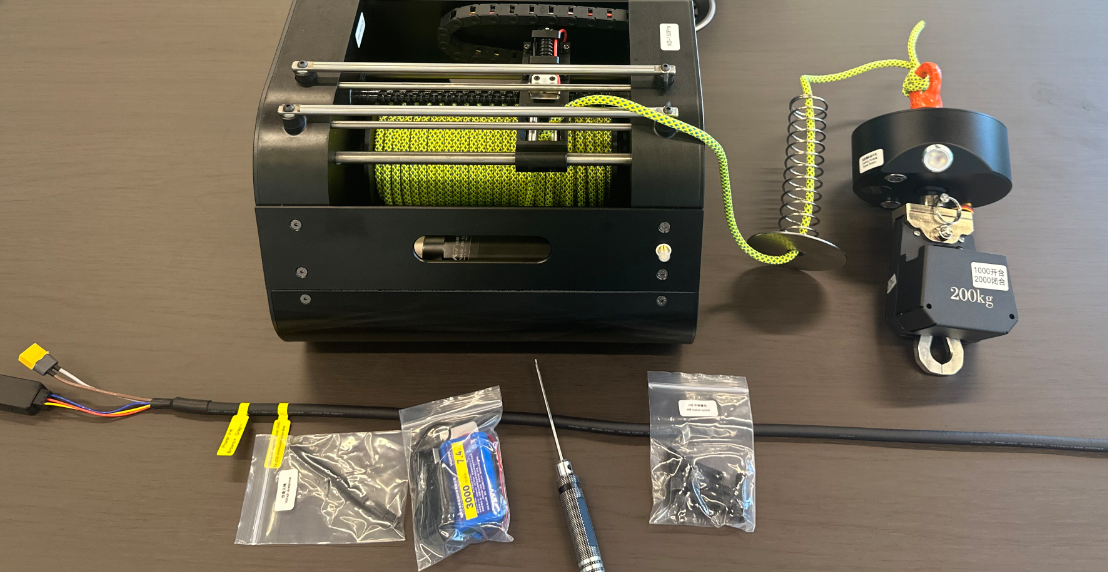

A dedicated payload winch for drone is designed around the specific requirements of UAV delivery, emergency rescue, equipment deployment, inspection support, and remote material transportation.

NEW WING offers electric drone winch solutions for different payload levels, including lightweight systems for loads up to 10 kg, medium-load systems with capacities up to 55 kg, and heavy-duty configurations supporting loads up to 150 kg. Depending on the model, available control options include remote control, SBUS, PWM, RS232/RS422, and optional CAN communication.

Available functions can include:

• ◆  Adjustable lifting and lowering speed

• ◆  Mechanical or intelligent automatic release devices

• ◆  Load warning and overload protection

• ◆  Power-off braking

• ◆  Anti-reverse winding protection

• ◆  Automatic cable arrangement

• ◆  One-click lifting and release

• ◆  Automatic stopping when the payload reaches the ground

• ◆  Ground-station integration

• ◆  Customized cable length and control interfaces

To identify the most suitable winch, buyers should provide the drone model, maximum payload weight, required cable length, operating voltage, lifting speed, control method, and intended application.

A correctly matched electric payload winch can improve delivery accuracy, reduce landing risks, protect the cargo, and provide more reliable performance throughout the drone mission.
