How to Choose the Right Drone Winch Load Capacity for Your UAV

Selecting the right drone winch load capacity is not simply a matter of choosing a winch that can lift the stated cargo weight. The aircraft must carry the winch body, mounting structure, rope, release hook, control components, and cargo at the same time. Wind, operating altitude, temperature, payload movement, and battery condition can further reduce the drone’s usable lifting performance.

For this reason, a successful UAV winch selection starts with the complete airborne system rather than the cargo alone.

A lightweight drone winch may be ideal for emergency supplies, inspection tools, or small logistics packages. Medium-duty systems are more suitable for industrial tools, agricultural materials, and larger delivery loads. Heavy-lift drone winches are designed for demanding construction, rescue, mining, and industrial transport applications.

This guide explains how to compare lightweight, medium-duty, and heavy-duty drone winches and how to calculate the capacity required for a safe and efficient operation.

Why Maximum Drone Payload Is Not the Same as Cargo Capacity

A drone’s published maximum payload normally refers to the total additional weight the aircraft can carry under specified conditions. It does not mean that the entire payload allowance can be used for cargo after a winch is installed.

The total airborne payload may include:

• ◆  Drone winch body

• ◆  Mechanical or automatic release hook

• ◆  Counterweight or rope-tension device

• ◆  Mounting brackets

• ◆  Power and communication cables

• ◆  Rope and rope-management components

• ◆  Cargo container or lifting frame

• ◆  The cargo itself

The basic relationship can be expressed as:

Total airborne payload = winch system weight + mounting accessories + cargo weight

The result must remain within the UAV manufacturer’s approved payload capacity. An additional operating reserve should also be maintained according to the aircraft manufacturer’s recommendations, flight conditions, and test results.

For example, suppose an industrial UAV has a maximum payload capacity of 15 kg. After installation, the winch, hook, mounting bracket, cables, and related accessories weigh 2 kg. The theoretical remaining allowance is 13 kg, but that does not automatically mean the drone should carry a 13 kg cargo load.

The operator must still consider wind, altitude, battery reserve, aircraft maneuverability, and the dynamic forces produced by a suspended payload.

Start with the Drone’s Actual Lifting Capability

Before selecting a payload winch for a drone, obtain the correct performance information for the aircraft.

Important data includes:

• ◆  Maximum approved payload

• ◆  Maximum takeoff weight

• ◆  Recommended continuous payload

• ◆  Hover time at different payload levels

• ◆  Performance at the operating altitude

• ◆  Maximum allowable center-of-gravity offset

• ◆  Battery reserve requirements

• ◆  Temperature and wind limitations

A UAV that can briefly lift a heavy load near the ground may not be able to complete a full winch mission safely. During an actual operation, the drone may need to take off, fly to the deployment point, hover while lowering the cargo, retrieve the rope, and return with sufficient battery reserve.

The winch selection should therefore be based on usable mission capacity rather than a short-duration lifting demonstration.

Calculate the Complete Winch System Weight

Winch body weight is one of the most important selection factors because every kilogram used by the winch reduces the weight available for cargo.

NEW WING’s product range includes different winch capacities for lightweight, medium-duty, and heavy-lift UAV platforms. The XD-10 has a maximum lifting capacity of 10 kg and a main body weight of approximately 1.1 kg. The XD-55 supports up to 55 kg and has a 5 kg main body. The XD-MAX heavy-duty winch supports up to 150 kg and has a 13 kg main body.

However, the main body is not the complete installed weight.

Based on the available product configurations, the XD-10 mechanical release hook weighs approximately 283 g, while its counterweight ring weighs approximately 379 g. Its optional smart automatic release hook weighs approximately 756 g. The XD-55 mechanical release hook weighs approximately 1.89 kg, and its optional smart automatic release hook weighs approximately 1.647 kg. Similar accessory considerations apply to the 150 kg system.

Therefore, buyers should ask the supplier to confirm the total weight of the ordered configuration, including:

• ◆  Winch body

• ◆  Selected release hook

• ◆  Rope

• ◆  Counterweight

• ◆  Controller

• ◆  Mounting components

• ◆  Connectors and cables

• ◆  Optional sensors

Do not compare winch models using main body weight alone.

Lightweight Drone Winches: Up to 10 kg

Lightweight drone winches are suitable when aircraft payload capacity is limited and minimizing system weight is a priority.

Typical applications include:

• ◆  Medical supply delivery

• ◆  Emergency food and water delivery

• ◆  Small inspection equipment deployment

• ◆  Lifeline or rescue-rope delivery

• ◆  Sensor placement

• ◆  Small agricultural material delivery

• ◆  Lightweight parcel transport

The XD-10 is designed for loads up to 10 kg and uses a standard 25-meter rope. Its main body weighs approximately 1.1 kg, allowing more of the aircraft’s payload capacity to remain available for cargo. It supports multiple control options, including PWM, SBUS, serial communication, CAN, remote control, and TTL configurations across the product platform.

A lightweight system is not only beneficial for small drones. It can also improve the endurance of a larger UAV carrying relatively light cargo.

For example, when the mission only requires a 3 kg emergency package, installing a much heavier 55 kg-capacity winch may unnecessarily reduce flight time. The larger motor and structure provide capacity that the mission does not use.

Choose a lightweight winch when:

• ◆  The cargo remains comfortably below 10 kg.

• ◆  Aircraft endurance is more important than maximum lifting capacity.

• ◆  The UAV has a limited payload allowance.

• ◆  Frequent transport of small loads is required.

• ◆  Compact dimensions and lower power consumption are priorities.

The buyer must still calculate the combined weight of the winch, release hook, counterweight, mounting structure, and cargo.

Medium-Duty Drone Winches: Up to 55 kg

Medium-duty winches are used when the cargo is too heavy for compact UAV systems but does not require a large heavy-lift platform.

Common applications include:

• ◆  Industrial tool delivery

• ◆  Construction-site material transport

• ◆  Agricultural equipment deployment

• ◆  Pipeline and infrastructure inspection support

• ◆  Emergency equipment delivery

• ◆  Remote-area logistics

• ◆  Mining sample retrieval

The XD-55 is designed to lift loads up to 55 kg. It has a 5 kg main body, a 30-meter rope, and a retraction-speed range of approximately 0.15 to 0.6 meters per second. The system has a full-load rated power of 400 W, while listed hover power consumption is below 20 W.

This capacity class provides a balance between lifting performance and system weight. However, the aircraft must be sized for more than the 55 kg cargo rating.

When equipped with the mechanical release hook, the XD-55 winch body and hook together weigh approximately 6.89 kg before mounting hardware, cables, and cargo are added. With the optional automatic release configuration, the installed weight will differ.

This means a UAV intended to carry a 40 kg cargo load may need to support considerably more than 40 kg of total airborne payload.

A medium-duty winch is generally appropriate when:

• ◆  The cargo regularly exceeds lightweight-system capacity.

• ◆  A 25- to 30-meter deployment distance is required.

• ◆  The aircraft can support the winch and cargo with an adequate reserve.

• ◆  More robust motors and structural components are necessary.

• ◆  Industrial communication or custom integration is required.

Medium-duty buyers should pay close attention to flight time. Carrying a heavier winch and cargo increases aircraft power consumption, while the winch motor also requires energy during deployment and retrieval.

Heavy-Duty Drone Winches: Up to 150 kg

Heavy-duty drone winches are designed for specialized industrial aircraft and high-capacity aerial platforms.

Typical applications include:

• ◆  Construction-material transport

• ◆  Heavy emergency equipment delivery

• ◆  Mining operations

• ◆  Large industrial tool deployment

• ◆  Remote infrastructure projects

• ◆  Heavy logistics support

• ◆  Specialized rescue operations

The XD-MAX supports a maximum lifting weight of 150 kg. Its main body weighs approximately 13 kg, and it uses a standard 25-meter rope. The system supports advanced control interfaces, including SBUS, PWM, RS232, RS422, and CAN, depending on the selected configuration. It operates within a listed power-supply range of 44–52 V.

The XD-MAX is manufactured for heavy industrial operations where high lifting capacity, reliable braking, stable rope management, and system integration are important. Its construction uses high-strength, corrosion-resistant materials for demanding working environments.

Nevertheless, a 150 kg winch rating does not mean that any drone capable of lifting 150 kg cargo is automatically suitable.

The complete system must account for:

• ◆  The 13 kg winch body

• ◆  Release-hook weight

• ◆  Mounting frame

• ◆  Control and power components

• ◆  Rope and related hardware

• ◆  Cargo lifting frame

• ◆  Actual cargo

• ◆  Required operating reserve

A heavy-lift aircraft may also experience significant dynamic forces when a suspended cargo begins to swing. Flight-control tuning, load positioning, acceleration limits, and operator training become increasingly important as payload weight rises.

Add an Appropriate Safety Margin

A drone winch should not be selected so that every component operates continuously at its absolute maximum rating.

An operating reserve helps accommodate factors such as:

• ◆  Wind gusts

• ◆  High-altitude operation

• ◆  Hot or cold temperatures

• ◆  Battery aging

• ◆  Unexpected cargo-weight variation

• ◆  Water absorbed by cargo or rope

• ◆  Dynamic loading during acceleration

• ◆  Payload swing

• ◆  Inaccurate weight estimates

• ◆  Repeated lifting cycles

There is no single safety-margin percentage suitable for every UAV winch application. The required reserve should be determined with the drone manufacturer, winch supplier, system integrator, and relevant engineering or regulatory personnel.

A larger reserve may be required when operating over people, water, steep terrain, industrial equipment, or inaccessible locations.

The winch’s rated load and the aircraft’s payload limit should both be checked independently. Selecting a 55 kg winch does not make a drone with a 30 kg payload capacity suitable for a 55 kg mission.

Consider Static Weight and Dynamic Load

Cargo weight measured on a scale is a static value. During flight, the system experiences dynamic forces.

Dynamic loading can occur when:

• ◆  The winch starts lifting suddenly.

• ◆  The rope stops at the upper limit.

• ◆  The aircraft accelerates or brakes.

• ◆  Wind causes the cargo to swing.

• ◆  The load becomes temporarily caught on an obstacle.

• ◆  The cargo contacts the ground during deployment.

• ◆  The rope changes tension rapidly.

A 20 kg cargo can create forces greater than its static weight during abrupt movement. For this reason, smooth starting, controlled stopping, adjustable winch speed, and careful aircraft maneuvering are important.

Automatic cable management can also improve operating stability by keeping the rope arranged correctly on the drum. The NEW WING range supports automatic cable management, one-click rope separation, ground release, and one-click cargo release across the listed product models.

Match Winch Capacity to the Mission

The heaviest available winch is not always the best choice.

The final choice should reflect the normal operating load, not only the largest load that might be carried once.

When most missions involve cargo below 8 kg, a 10 kg-class winch may be the more efficient solution. When regular cargo loads reach 30–50 kg, a medium-duty system provides a more suitable operating range. Applications approaching 100 kg or more require a heavy-lift aircraft and an appropriately engineered 150 kg-class winch system.

Other Factors That Affect Winch Selection

Load capacity is the starting point, but it should not be evaluated alone.

Buyers should also confirm:

Rope Length

Longer rope allows the drone to remain farther from the delivery point, but it adds weight, deployment time, swing risk, and cable-management complexity. The listed systems use standard rope lengths of approximately 25 or 30 meters, depending on the model.

Retraction Speed

Higher speed reduces hovering time, while slower movement may improve placement accuracy and payload stability. Speed should be verified under the expected working load.

Release Method

Mechanical, smart automatic, ground-contact, and one-click cargo-release options support different mission requirements. The ordered release configuration affects both functionality and system weight.

Control Protocol

The winch must communicate with the aircraft, remote controller, onboard computer, or ground station. Confirm the required PWM, SBUS, RS232, RS422, CAN, TTL, or remote-control interface before ordering.

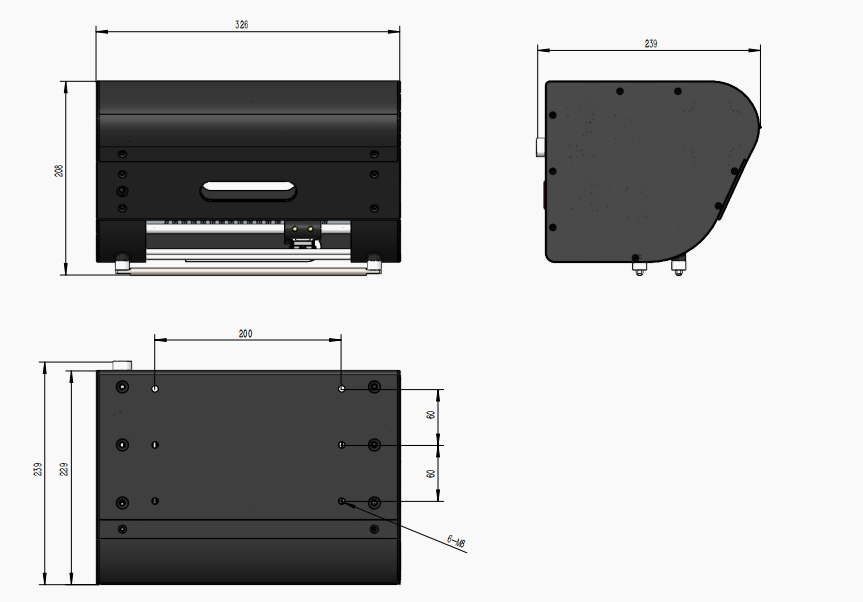

Mounting Compatibility

Check dimensions, mounting-hole positions, ground clearance, rope-exit location, and center of gravity. A mechanically incompatible winch can affect aircraft stability even when the weight is within the permitted range.

Drone Winch Load-Capacity Selection Checklist

Before requesting a quotation, prepare the following information:

1. Drone model and maximum payload capacity

2. Maximum takeoff weight

3. Typical and maximum cargo weight

4. Winch body and accessory-weight allowance

5. Required rope length

6. Required lifting and retraction speed

7. Mechanical or automatic release preference

8. Control and communication protocol

9. Power-supply voltage

10. Mounting-space limitations

11. Operating altitude and temperature

12. Expected wind conditions

13. Number of lifting cycles per flight

14. Required safety and emergency functions

15. Application environment and corrosion exposure

Providing this information enables the supplier to evaluate whether a 10 kg, 55 kg, 150 kg, or customized winch system is appropriate.

Conclusion

Choosing the right drone winch load capacity requires a complete system calculation. Buyers must consider the drone’s actual payload capability, winch body weight, hook and accessory weight, cargo weight, mounting components, operating conditions, and safety reserve.

A lightweight 10 kg-class winch is suitable for medical supplies, sensors, inspection tools, and small logistics packages where low weight and flight endurance are priorities. A 55 kg medium-duty winch supports larger industrial, agricultural, rescue, and construction loads. A 150 kg heavy-duty drone winch is intended for specialized aircraft performing demanding industrial transport and lifting operations.

The correct system is not necessarily the winch with the highest lifting capacity. It is the winch that provides sufficient capacity while preserving aircraft stability, endurance, control, and operational safety.

NEW WING offers drone payload winch solutions ranging from lightweight to heavy-duty configurations, including XD-10, XD-55, and XD-MAX systems. Buyers can select or customize the load capacity, rope length, release mechanism, control interface, and integration configuration according to their UAV platform and application requirements.
