XD-MAX Winch for Drone
XD-MAX Winch for Drone
| Basic Parameters | Main body dimensions | 326*225*208mm |
| Main body weight | 13kg | |
| Mechanical release device weight (optional) | 1890g | |
| Smart Auto Release Device (optional) | 1647g | |
| Rope length | 25m | |
| Configuration Plan 1 | Max load weight | 150kg |
| Retraction speed | 0.1-0.4m/s | |
| Motor speed | 32-128RPM | |
| Supply Voltage | Power supply mode | Battery powered, does not support DCDC power supply. |
| Power supply voltage | 44-52V | |
| Full load rated power | 400W | |
| Hover power | <20W | |
| Control Mode | SBUS | Standard |
| Remote control | Standard | |
| PWM | Standard | |
| RS232/RS422 | Optional, can be used for ground station development | |
| CAN communication | Optional, can be used for ground station development |

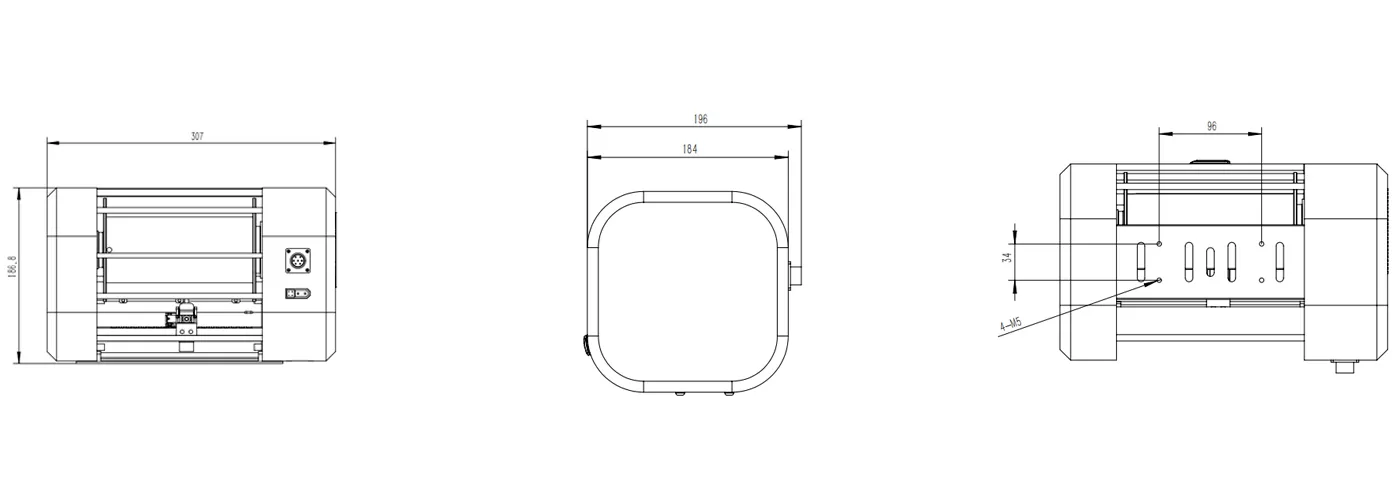

Mechanical Drawing
Outline Drawing
Mechanical Release Device
Smart Auto Release Device
