Specifying a Drone Winch System: What to Consider Before You Buy

A drone winch system enables an unmanned aerial vehicle to lower, lift, retrieve, or release a payload while the aircraft remains in flight. It is increasingly used in emergency rescue, industrial logistics, construction support, agricultural operations, infrastructure inspection, environmental monitoring, and deliveries to remote locations.

However, choosing the right winch is more complicated than comparing maximum lifting capacities. The winch must work as part of a complete aerial payload system that includes the drone, mounting structure, power supply, control interface, rope, hook, release device, cargo, and flight-control system.

A winch that is too heavy may reduce flight time and usable payload. A system with insufficient rope management may become tangled during deployment. An incompatible communication interface may prevent integration with the flight controller or ground station. More importantly, a winch without appropriate emergency functions can create serious operational risks when the rope or payload becomes trapped.

Before purchasing a drone winch system, buyers should evaluate the complete mission profile and define the technical requirements discussed below.

1. Define the Mission Before Selecting the Winch

The first step is to describe what the drone must accomplish. Avoid starting the selection process with a specific winch model or maximum load rating.

Instead, answer several mission-related questions:

• ◆  What type of payload will be transported?

• ◆  What is the actual cargo weight?

• ◆  How far must the payload be lowered?

• ◆  Will the load be released in the air or after touching the ground?

• ◆  Must the system retrieve cargo as well as deliver it?

• ◆  How many deployment cycles are required during one flight?

• ◆  Will the drone operate over water, mountains, buildings, forests, mines, or construction sites?

• ◆  Is manual control sufficient, or must the winch connect to a ground station?

• ◆  What happens if the rope becomes entangled?

For example, delivering a small medical package to a remote community requires a different system from lowering industrial tools onto a construction site. The medical delivery application may prioritize low system weight, accurate placement, and automatic release. The construction application may require a much higher load capacity, stronger braking, tension monitoring, and more robust mechanical components.

A clearly written mission profile helps the drone winch supplier recommend the correct motor, rope length, release device, communication protocol, and safety functions.

2. Calculate the Real Payload Requirement

One of the most common purchasing mistakes is treating cargo weight as the only payload.

The drone must carry the combined weight of:

• ◆  Winch main body

• ◆  Mounting bracket

• ◆  Rope

• ◆  Mechanical or electric release hook

• ◆  Counterweight or anti-swing device

• ◆  Power cables and controller

• ◆  Cargo and packaging

The basic calculation should be:

Total suspended system weight = winch weight + accessories + hook assembly + cargo weight

The total must remain within the drone manufacturer’s approved payload limit, with an appropriate operating margin.

Suppose a drone can carry 15 kg. If the winch body, release device, mounting structure, and wiring weigh approximately 2 kg, the available capacity for cargo will be less than 13 kg. The operator must then reserve an additional margin for wind, altitude, temperature, battery condition, and dynamic load movement.

Do not select a winch only because its rated lifting capacity matches the cargo weight. The aircraft must be capable of safely carrying both the cargo and the complete winch assembly.

3. Select the Right Load Class

Drone winches are available for lightweight delivery, medium-duty industrial transport, and heavy-lift operations. Selecting an unnecessarily large system adds weight, cost, and power consumption. Selecting a system too close to its maximum rating may reduce safety margins and service life.

For lighter missions, the XD-10 provides a maximum lifting capacity of 10 kg with a 25-meter rope. Its main body weighs approximately 1.1 kg, making it suitable for applications where aircraft payload efficiency is important. It supports remote control, SBUS, and PWM as standard control options, while RS232 or RS422 can be added for ground-station development.

For medium-duty transportation, the XD-55 supports loads up to 55 kg. It uses a 30-meter rope, provides a retraction speed of 0.15 to 0.6 meters per second, and supports optional RS232, RS422, and CAN communication for custom integration.

For heavy-lift platforms, the XD-MAX provides a maximum lifting capacity of 150 kg. It is designed for industrial drones, helicopters, and other heavy aerial platforms requiring controlled lifting, lowering, and payload release.

These models demonstrate why buyers should select a load class according to the complete mission rather than choosing the highest possible rating.

4. Determine the Required Rope Length

Rope length controls how far the drone can remain from the delivery or retrieval point.

A longer rope may allow the aircraft to:

• ◆  Remain above trees or buildings

• ◆  Avoid dust and debris generated by rotor wash

• ◆  Deliver supplies into narrow or obstructed locations

• ◆  Lower equipment from a safe altitude

• ◆  Keep the drone away from people, vehicles, or machinery

However, a longer rope also introduces additional challenges. It increases total system weight, deployment time, pendulum movement, wind sensitivity, and the risk of tangling.

Buyers should therefore specify the required working length rather than simply requesting the longest available rope.

Consider the aircraft’s expected hover altitude, obstacle height, positioning accuracy, and required ground clearance. If most deliveries occur from 10 meters above the ground, a 25- or 30-meter rope may provide sufficient operating flexibility without introducing unnecessary weight.

The rope should also be evaluated for tensile strength, abrasion resistance, flexibility, environmental resistance, and compatibility with the winch drum.

5. Evaluate Deployment and Retraction Speed

Winch speed affects both mission efficiency and load stability.

A faster winch can reduce hover time and aircraft energy consumption. However, excessively rapid deployment may cause the cargo to swing, rotate, or strike the ground. A slower system may improve placement accuracy but keep the drone hovering for too long.

The ideal speed depends on:

• ◆  Payload weight

• ◆  Rope length

• ◆  Wind conditions

• ◆  Delivery accuracy

• ◆  Aircraft endurance

• ◆  Type of release mechanism

• ◆  Operator experience

Buyers should request loaded-speed data rather than relying only on no-load motor speed.

The XD-10, for example, provides a retraction speed range of 0.1 to 0.6 m/s, while the XD-55 operates from 0.15 to 0.6 m/s. The heavier XD-MAX uses a 0.1 to 0.4 m/s range to provide more controlled movement for large payloads.

Adjustable speed is particularly useful when the operator needs faster movement during the main deployment and slower movement near the target.

6. Review the Control and Communication Interfaces

Control compatibility is essential when integrating a drone winch with an existing aircraft or custom UAV platform.

Common control options include:

• ◆  Independent remote control

• ◆  PWM

• ◆  SBUS

• ◆  RS232

• ◆  RS422

• ◆  TTL

• ◆  CAN communication

PWM and SBUS are often suitable for direct control through common flight controllers or remote-control channels. They can operate basic lifting, lowering, stopping, and cargo-release functions.

RS232, RS422, TTL, and CAN are more suitable when the winch must communicate with a ground station, onboard computer, or custom mission-control system.

Before ordering, the buyer should provide:

• ◆  Flight-controller model

• ◆  Communication protocol

• ◆  Required voltage level

• ◆  Connector definition

• ◆  Ground-station software requirements

• ◆  Commands that must be supported

• ◆  Telemetry or status-feedback requirements

For industrial systems, RS422 or CAN may be preferable where stronger anti-interference performance and reliable communication are required.

The NEW WING payload winch range supports multiple standard and optional control methods, allowing systems to be operated independently or integrated into third-party drone and ground-station platforms.

7. Decide How the Payload Should Be Released

The payload-release mechanism should match the application.

The main options include:

Mechanical Release Device

A mechanical release device offers a relatively simple structure and can be suitable for missions where the operator controls the complete lifting and unloading process.

Smart Automatic Release Device

An automatic release system can disconnect the cargo after it reaches the ground. This reduces the need for personnel to manually remove the hook and can improve efficiency during remote deliveries.

Remote Electric Release

A remotely controlled electric hook allows the operator to release the cargo at a selected moment. This can be useful for accurately controlled aerial deployment, although the release command must be protected against accidental activation.

Emergency Rope Cut-Off

An emergency rope-separation function may be necessary when the rope becomes trapped in a tree, building, vehicle, or industrial structure.

Without an emergency separation method, the trapped rope may pull the drone off course or prevent it from returning safely. The emergency function should be used only when necessary, but it can provide an important final level of protection.

8. Examine Rope Management and Anti-Tangle Design

Rope management is one of the most important but frequently overlooked parts of a drone winch system.

During deployment and retrieval, the rope must wind evenly around the drum. Loose winding, overlapping layers, reverse winding, or uneven tension can result in jamming and premature rope damage.

Useful rope-management features include:

• ◆  Automatic orderly winding

• ◆  Anti-reverse winding

• ◆  Tension control

• ◆  Upper and lower limit stops

• ◆  Automatic stop after ground contact

• ◆  Controlled deceleration near the upper limit

• ◆  Emergency rope separation

The XD product range incorporates automatic cable management, anti-reverse winding, one-click lifting, one-click release, and ground-contact stopping functions.

For heavy-load applications, buyers should also ask how much rope must remain outside the drum during maximum-load testing. Excessive loading on inner rope layers may compress or damage the rope if the winding configuration is not appropriate.

9. Consider Payload Swing and Dynamic Forces

A suspended payload does not remain completely stable under the drone.

When the aircraft accelerates, turns, stops, or encounters wind, the cargo may begin to swing. This pendulum movement can reduce positioning accuracy and affect aircraft stability.

The risk increases with:

• ◆  Longer ropes

• ◆  Heavier loads

• ◆  High flight speeds

• ◆  Sudden directional changes

• ◆  Strong crosswinds

• ◆  Irregularly shaped cargo

• ◆  Off-center lifting points

Operators can reduce swing through smoother flight paths, gradual acceleration, controlled winch speed, lower approach speeds, and properly designed cargo attachment points.

For advanced heavy-lift applications, tension monitoring and swing detection may provide additional operating information. The XD-MAX can be configured with functions including power-failure braking, real-time tension monitoring, and rope-sway detection for demanding aerial lifting missions.

10. Check Power-Supply Compatibility

A winch may be powered by the drone’s electrical system or by a separate battery.

When the winch is powered separately, buyers should confirm:

• ◆  Input-voltage range

• ◆  Battery type

• ◆  Maximum current

• ◆  Full-load power

• ◆  Connector type

• ◆  Battery weight

• ◆  Charging requirements

• ◆  Low-voltage protection

The XD-10 supports a supply-voltage range of 22–56 V. The XD-55 and XD-MAX use a 44–52 V supply range. The XD-55 and XD-MAX list a full-load rated power of 400 W and hover power consumption below 20 W.

Power consumption should be included in the total mission-endurance calculation. Even when the winch uses a separate battery, the added battery weight will affect the aircraft’s hover time.

11. Verify Mechanical Integration

The winch must fit the drone structurally without interfering with the landing gear, sensors, propellers, batteries, or other payloads.

Before purchasing, request a dimensioned installation drawing and confirm:

• ◆  Mounting-hole positions

• ◆  Main body dimensions

• ◆  Ground clearance

• ◆  Rope exit location

• ◆  Connector location

• ◆  Center-of-gravity position

• ◆  Quick-release requirements

• ◆  Access for maintenance

• ◆  Hook storage during takeoff and landing

The winch should normally be installed close to the aircraft’s central lifting axis. An off-center installation can produce uneven motor loading and affect controllability.

Physical installation should be reviewed together with the aircraft manufacturer or UAV integration team.

12. Assess Environmental Conditions

A drone winch used indoors will have different requirements from one used in mining, offshore, agricultural, or emergency-response operations.

Define the expected exposure to:

• ◆  Rain

• ◆  Dust

• ◆  Salt spray

• ◆  High temperatures

• ◆  Freezing conditions

• ◆  Mud and sand

• ◆  UV radiation

• ◆  Industrial chemicals

• ◆  Corrosive environments

Ask which components are environmentally protected. The enclosure may resist dust or moisture while the hook, rope, electrical connectors, or release device remain exposed.

For harsh operating conditions, buyers should discuss corrosion-resistant materials, sealed connectors, drainage design, rope selection, and maintenance procedures with the supplier.

13. Evaluate Safety Functions

A reliable drone winch should provide multiple layers of protection.

Depending on the mission, important functions may include:

• ◆  Load warning

• ◆  Overload protection

• ◆  Power-off braking

• ◆  Upper-limit protection

• ◆  Lower-limit protection

• ◆  Emergency rope cut-off

• ◆  Automatic ground stop

• ◆  Automatic cargo release

• ◆  Anti-reverse winding

• ◆  Tension monitoring

• ◆  Swing detection

The required safety functions should be selected according to the consequences of a failure.

A lightweight parcel-delivery mission may not require the same monitoring functions as a 150 kg industrial transport operation. Nevertheless, every application should have a defined response to communication loss, power failure, rope entanglement, motor overload, or release-hook failure.

14. Ask About Testing and Documentation

The supplier should provide more than a maximum-load number.

Before placing a bulk or project order, request:

• ◆  Technical datasheet

• ◆  Installation drawing

• ◆  Wiring diagram

• ◆  Communication protocol

• ◆  Control instructions

• ◆  Payload test results

• ◆  Rope inspection requirements

• ◆  Maintenance schedule

• ◆  Spare-parts list

• ◆  Troubleshooting guide

• ◆  Warranty terms

• ◆  Software or firmware support

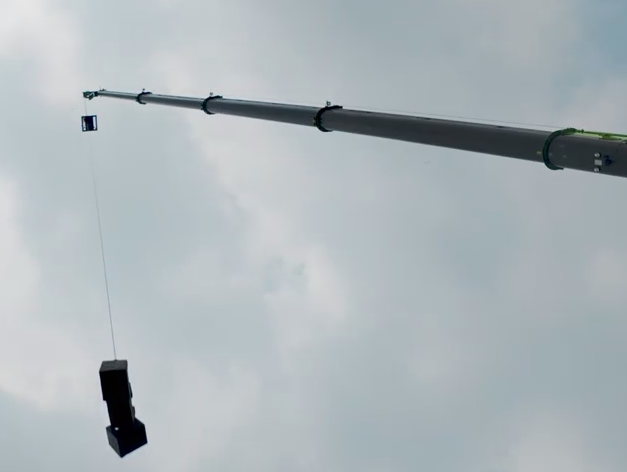

Where possible, arrange a test using the intended drone, expected payload, required rope length, and normal release procedure.

Testing should include more than a stationary lifting demonstration. It should evaluate takeoff, hover, forward flight, turning, stopping, lowering, retrieval, cargo release, and emergency response.

Drone Winch Purchasing Checklist

Conclusion

Specifying a drone winch system requires more than matching the advertised lifting capacity to the cargo weight. Buyers must evaluate the complete system, including winch weight, aircraft capacity, rope length, speed, power supply, control protocol, release mechanism, mounting structure, operating environment, and safety requirements.

Begin with a detailed mission profile. Calculate the total airborne weight, define the required deployment distance, and determine whether the system needs simple remote control or full ground-station integration. Then review rope management, emergency separation, power-failure behavior, payload swing, and environmental protection.

For lightweight, medium-duty, and heavy-lift applications, the XD-10, XD-55, and XD-MAX provide different combinations of lifting capacity, system weight, rope length, control interfaces, and intelligent safety functions. NEW WING can also support technical integration and customized drone winch configurations based on the aircraft platform, payload, communication protocol, and operating scenario.
