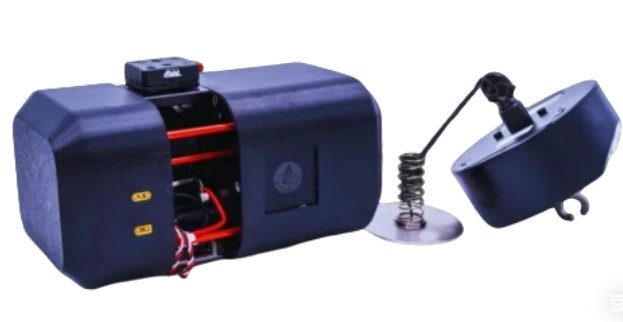

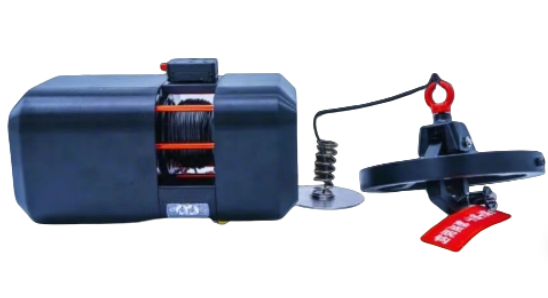

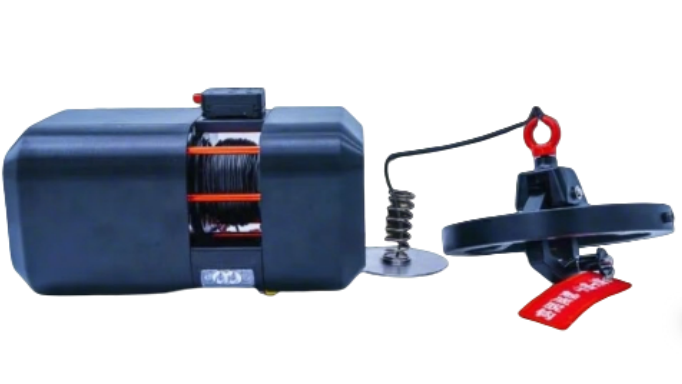

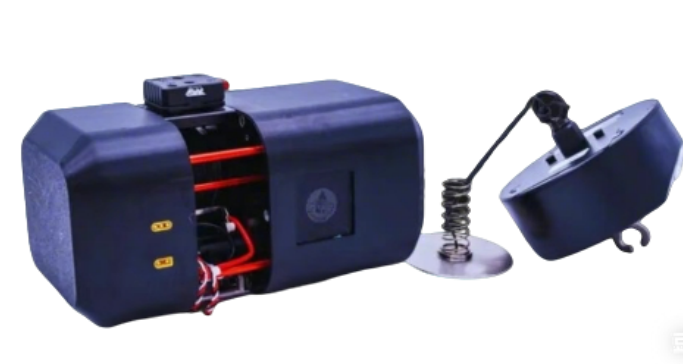

Product Introduction of UAV Cargo Winch XD-15 & XD-25

Product Introduction of UAV Cargo Winch XD-15 & XD-25

(New Wing E-Carry Aviation, Specialized for Industrial-Grade Aerial Lifting)

I. Core Positioning

XD-15 and XD-25 are electric cargo winches dedicated to light and medium-sized industrial UAVs, designed specifically for low-altitude logistics distribution, emergency rescue, material airdrop, and inspection hoisting. Compatible with mainstream heavy-lift UAVs such as DJI M300/M350/M400, they enable precise hovering delivery, safe lifting and lowering, and unmanned automated operations.

II. Core Parameter Comparison (Key Specifications)

XD-15 (Mechanical Release Device Version)

XD-25 Pro (Smart Auto Release Device Version)

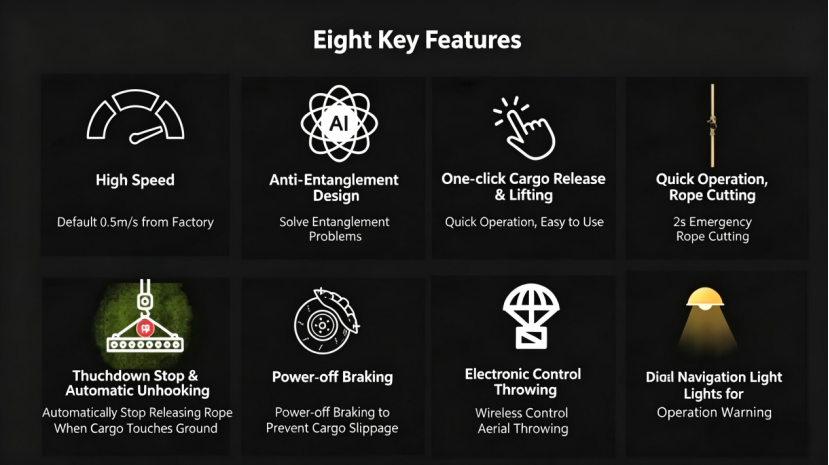

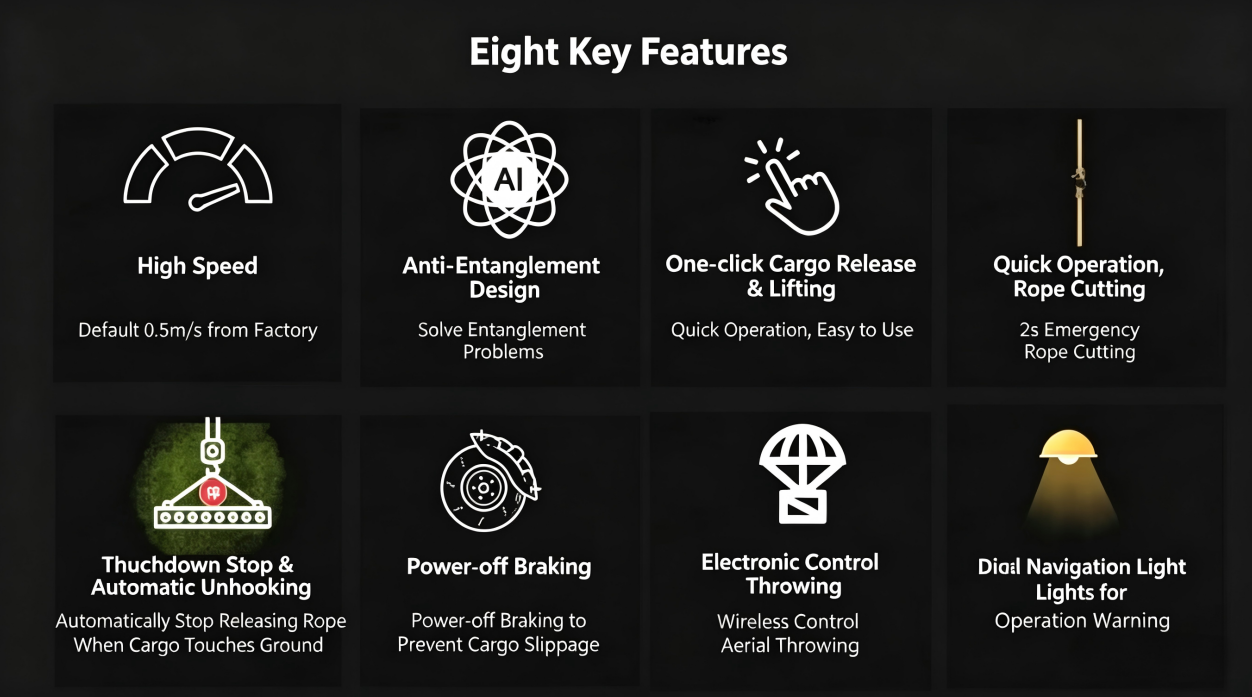

III. Core Functions (General & Differentiated)

1. Safety Control

• One-click release / one-click emergency rope cutting, power-off self-locking brake, anti-reverse rotation, anti-rope tangling, tension overload protection, upper and lower stroke limit.

• Automatic unhooking/stopping when touching the ground, preventing UAV attitude disturbance and load dragging.

2. Intelligent Integration

• Support linkage with UAV flight control system, remote ground station monitoring, real-time load status feedback, and visualized hoisting progress.

• Accessible to UAV autopilot system to achieve a closed loop of fully automatic fixed-point delivery/recovery.

3. Lightweight & Reliability

• High-strength aviation aluminum casing, wear-resistant and corrosion-resistant steel wire rope/Kevlar rope, long-life brushless motor, supporting 24×7 continuous operation.

• XD-15 focuses on lightweight and high efficiency, suitable for small and medium-sized load UAVs; XD-25 emphasizes medium-load stability, meeting the needs of regular logistics and rescue material distribution.

IV. Typical Application Scenarios

• Low-Altitude Logistics: Airdrop of express delivery, takeout, and fresh food; material distribution in remote areas.

• Emergency Rescue: Delivery of medicines, food, life-saving equipment, and emergency supplies to disaster-stricken areas, mountainous regions, and offshore areas.

• Industrial Inspection: Hoisting of tools, sensors, and testing equipment for power facilities, iron towers, and bridges.

• Agricultural & Forestry Operations: Precise delivery of pesticides and fertilizers; supply of materials in forest areas.

V. Core Advantages

• Plug-and-play, compatible with mainstream industrial UAVs, enabling rapid integration without complex modification.

• Full-process safety redundancy, eliminating the risks of load falling and winch out-of-control.

• Customization support: rope length, load capacity, communication protocol, and automatic release/unhooking module.
