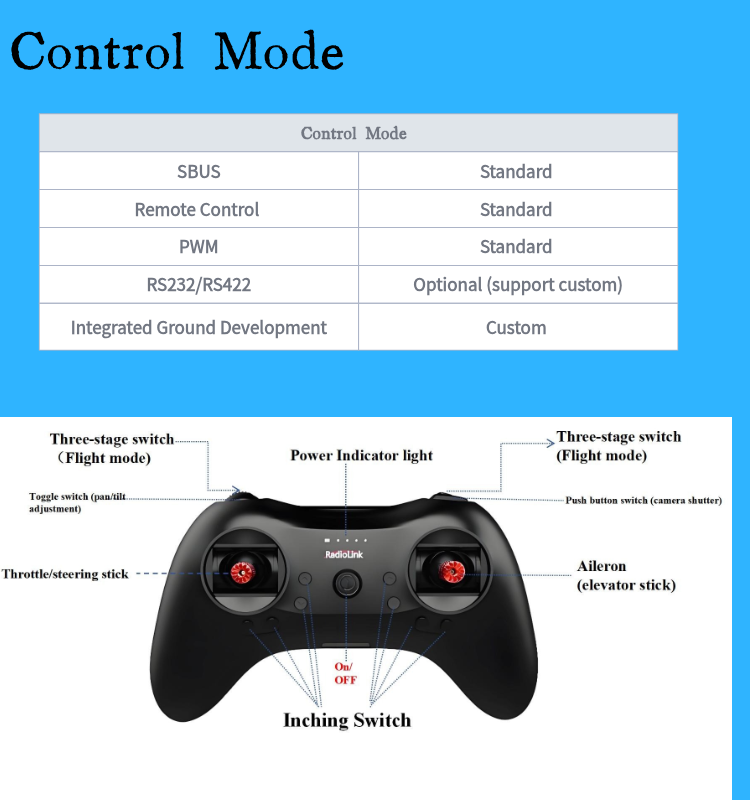

Our XD-Series winch has five control modes mainly. Also we can custom as clients special requirements. Today we would like to introduce two control mode for you: PWM and Sbus.
XD-10 has 3 PWM control interfaces reserved at the factory. If the user needs to control via PWM, the user only needs to match the PWM channel and the corresponding instructions. The manufacturer provides a debugging remote controller based on SBUS communication, which can be used by customers to debug the equipment functions on the ground.
Command | Channel | Trigger condition (μs) |
Up | Channel 1 | 1600-2200 |
Down | Channel 1 | 800-1400 |
Stop | Channel 1 | 1400-1600 |
Fuse | Channel 2 | 1600-2200 |
One-touch throw on | Channel 3 | 1600-2200 |
One-touch throw off | Channel 3 | 800-1400 |
FIG 1 PWM Channel function definition sheet
*It is recommended to use the middle value of the trigger condition for control.
1.SBUS default channel configuration
Before users configure SBUS for control, connect the SBUS communication line and connect the SBUS communication line to the SBUS control interface. Users only need to configure according to the default channel settings of the product when it leaves the factory:
Command | Channel | Trigger condition (μs) |
Up |
Channel 3
| ＞1700 |
Down | ＜300 | |
Stop | Others | |
Fuse (must be met at the same time) | Channel 1 | ＜300 |
Channel 2 | ＞1500 | |
One--click up | Channel 5 | ＞1500 |
One--click down | Channel 7 | ＞1500 |
One--click throw (On/off switch trigger) | Channel 6 | ＞1500 |
FIG 2 Definition sheet of factory default channel function

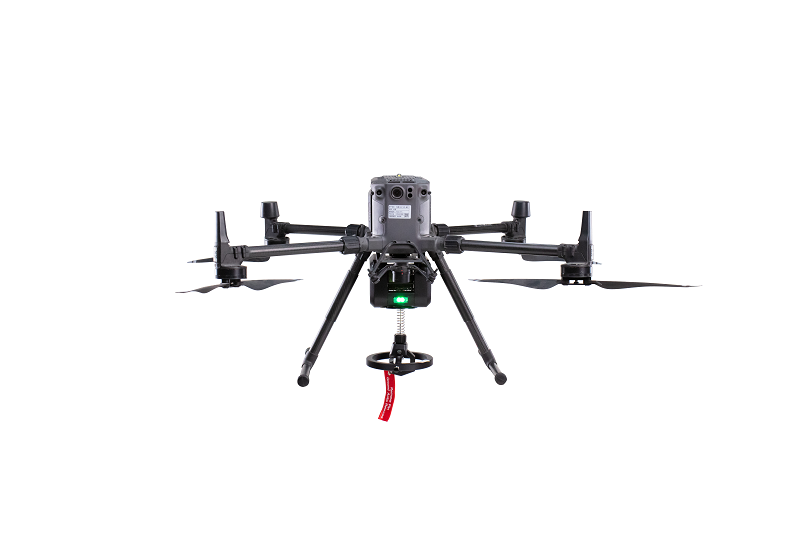

Our XD-10 winch for drone, supporting max payload 10kg, if you want your drone delivery to be more efficient, welcome to contact us.
