Automated Payload Pickup in Drone Operations

Automated payload pickup is one of the most difficult problems in drone logistics. Even under controlled conditions, current solutions still depend on precise alignment, stable hovering, and reliable mechanical engagement. In real-world use, wind, payload variation, and time limits make the task even more demanding. To solve this, engineers are developing a wide range of systems that reduce human intervention and make pickup operations faster, safer, and more repeatable.

1. Passive Ground Interfaces for Tether Capture

One practical approach is to use passive ground fixtures that guide a tether into position without manual handling. Instead of requiring perfect timing between the drone and the payload hook, these interfaces use shaped channels, funnels, and alignment features to steer the tether tip into place automatically. Once engagement occurs, the drone can focus only on winch control while the ground geometry handles the rest.

This design reduces hover time, lowers battery consumption, and makes remote pickup stations easier to deploy. It also improves safety by minimizing swing during lift-off.

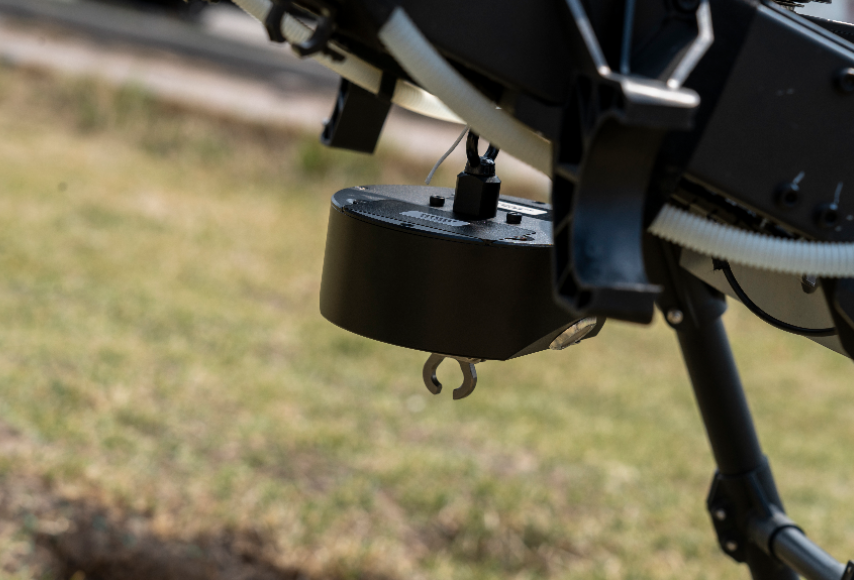

2. Smart Winches and Free-Hanging Couplers

When a payload hangs freely beneath the aircraft, even small disturbances can affect flight stability. Smart winches help solve this by monitoring current, torque, and speed to detect whether the system is under load, being pulled intentionally, or experiencing a fault. Based on these signals, the controller can switch between retract, unwind, hold, or free-spool modes.

At the same time, oscillation control logic can reduce swing by adjusting tether length, adding drag, or making small corrective maneuvers. Lightweight couplers and passive release heads further simplify the mechanism, making the system safer and more robust even if power is lost.

3. Detachable Cargo Pods and Latching Docks

For urban delivery and dock-based operations, detachable cargo pods offer a faster and safer alternative to long hover times. These systems allow the drone to connect and disconnect in seconds while staying above pedestrians and ground obstacles.

Some designs combine docking, power transfer, and battery exchange in one platform. Others rely on self-centering latches or gravity-assisted interfaces that tolerate positioning errors and confirm engagement before takeoff. These concepts improve turnaround speed and support more reliable autonomous launches, even in challenging environments.

4. Telescoping Forks and Lift Tables for Mobile Pickup

When cargo is packed tightly in trucks, lockers, or warehouse systems, a pod may not be able to fit underneath the load. Telescoping fork systems solve this problem by extending a compact mast-and-tine assembly into a crate or under a parcel, then lifting it just enough to secure the load.

Lift-table variants go a step further by combining flying and rolling functions. They can clamp, transport, and release freight with minimal human help, making them useful for depot workflows where space is limited and flexibility matters.

5. On-Drone Manipulator Arms and Grippers

For irregular packages or cluttered environments, drones need more dexterity than a simple hook or pod can provide. That is where articulated arms and grippers come in. These systems use cameras, proximity sensors, and adaptive joints to reach toward a target, grasp it, and stabilize it during flight.

Different end-effectors serve different purposes. Some grippers are designed for compact folding and stability, while others keep the center of gravity aligned with the aircraft axis. More advanced frames can even expand or reconfigure around the load, allowing the drone to handle objects that are larger or less regular than its stored shape.

6. Vision and Sensor Frameworks

Reliable pickup starts with accurate perception. The drone must know what the object is, where it sits, how it is oriented, and how its weight is distributed. Multi-sensor systems combine barcode or QR reading with depth, infrared, LiDAR, and other sensing methods to build a more complete view of the payload and its surroundings.

These sensing methods become especially important in GPS-denied spaces, warehouses, or moving-target scenarios. They help the drone localize the object, predict motion, and align the lift force with the payload’s center of gravity, which improves stability and reduces wasted energy.

7. Automated Ground Loaders and Vehicle Platforms

Another way to speed up drone logistics is to move the packages to the aircraft instead of making the aircraft search for the packages. Autonomous vans, roof-mounted loading systems, and synchronized platforms can present cargo to the drone at the right height and angle for rapid exchange.

These systems are useful for warehouse hubs, mobile delivery vehicles, and long-range operations. By keeping the drone in motion or reducing ground handling time, they improve utilization and help support higher delivery throughput.

8. In-Flight Release and Mid-Air Capture

Some mission profiles benefit from never fully stopping the aircraft. In these cases, payloads can be released in motion using mechanisms that cancel momentum at the moment of drop, allowing the object to descend more vertically while the drone continues its route.

The same idea can work in reverse for retrieval. If the falling object can transmit state data such as position, speed, and attitude, the drone can adjust its path in real time and capture it mid-air. These methods are especially valuable when speed and endurance are more important than landing precision.

9. Dynamic Mission Management

Hardware alone is not enough. Fleet software must also assign tasks intelligently so that drones are not tied to a specific package too early. Package-agnostic workflows let the system identify the cargo after loading, update the route in real time, and reduce idle time on the ground.

This becomes even more valuable in time-sensitive delivery scenarios, where the platform must react to changing demand and adjust pickup or handoff timing automatically. In practice, this is what turns drone payload handling from a static process into a flexible logistics service.

Conclusion

Automatic payload pickup is evolving from a single mechanical problem into a full system challenge that combines geometry, sensing, control, and software orchestration. The most effective solutions reduce manual intervention, shorten hover time, improve stability, and make autonomous drone operations more practical in real-world logistics.
