Emergency Rescue Drone Winch for UAV Supply Delivery

An emergency rescue drone winch allows a UAV to lower critical supplies into locations where landing is unsafe, impractical or impossible. The drone can remain above floodwater, damaged buildings, steep terrain, trees or crowded rescue areas while delivering the payload closer to the intended recipient.

Material delivery and transportation:

Drone winches can also be used for the delivery and transportation of materials. When traffic in the disaster area is blocked or ground rescue forces are difficult to reach, these systems can support the delivery of first-aid kits, flotation devices, communication equipment, emergency food, drinking water, rescue ropes, monitoring devices and other unmanned rescue payloads, to the disaster area, providing timely rescue support for residents in the disaster area. In addition, drones can also be used to transport urgently needed medical supplies such as blood and organs, providing strong support for medical rescue.

Depending on the selected model and configuration, the winch can support controlled lowering, rope retraction, one-touch release, ground-contact automatic unhooking and integration with a remote controller or third-party ground station.

Why Use a Drone Winch in Emergency Rescue?

Direct drone landing may create additional risks in disaster areas. The ground may be flooded, unstable, obstructed or surrounded by people. Rotor downwash can also disturb debris and make it difficult for rescuers or survivors to approach the aircraft.

A drone winch for search and rescue allows operators to:

• ·   Deliver supplies without landing the UAV.

• ·   Keep the aircraft and propellers away from people and obstacles.

• ·   Place payloads more accurately than an uncontrolled aerial drop.

• ·   Reach areas blocked by floods, landslides or damaged roads.

• ·   Lower emergency equipment from a controlled height.

• ·   Release the payload after it reaches the delivery point.

• ·   Retract the rope before the UAV continues or returns.

This operating method is suitable for rescue locations with limited landing space, uneven terrain, standing water, damaged infrastructure or other ground hazards.

Key Features of Our Emergency Rescue Drone Winch

◆ Multiple Load Options: The XD Series includes 10 kg, 55 kg and 150 kg maximum load configurations for lightweight medical supplies, medium-load rescue equipment and heavy emergency cargo.

◆ Optional Release Configurations: Mechanical and smart auto-release devices are available for different delivery workflows. Depending on the configuration, the system can support remote release or automatic unhooking after ground contact.

◆ Multiple Control Interfaces: Remote control, SBUS and PWM are supported as standard control options. RS232/RS422 and CAN communication are available for applicable models and custom ground station integration.

◆ Controlled Rope and Payload Handling: Available functions include one-touch lifting and lowering, one-click release, anti-reverse winding, automatic rope arrangement and payload weight indication. Functions vary by model and release configuration.

◆ Industrial UAV Integration: The winch structure is designed for installation on commercial and industrial UAV platforms. Selected heavy-load models use high-strength molded housings for improved wear resistance during repeated operations.

◆ Efficient Power Consumption: The XD-55 and XD-MAX have a full-load rated power of 400 W and consume less than 20 W while hovering with the winch inactive. Power requirements should be confirmed according to the selected model and UAV power system.

Emergency Rescue Drone Winch Applications

Emergency Rescue

Rapidly deliver essential supplies such as food, water, and medical equipment to disaster zones, floods, or remote areas.

Flood and Water Rescue

The winch can lower lifebuoys, flotation devices, rescue ropes, communication equipment, drinking water and first-aid supplies to people isolated by floodwater. The UAV does not need to land on a rooftop, boat, riverbank or partially submerged structure.

Mountain and Remote-Area Rescue

In mountains, forests and other difficult terrain, a UAV rescue winch can deliver survival kits, radios, thermal blankets, food, water, lighting equipment and compact medical supplies before ground teams arrive.

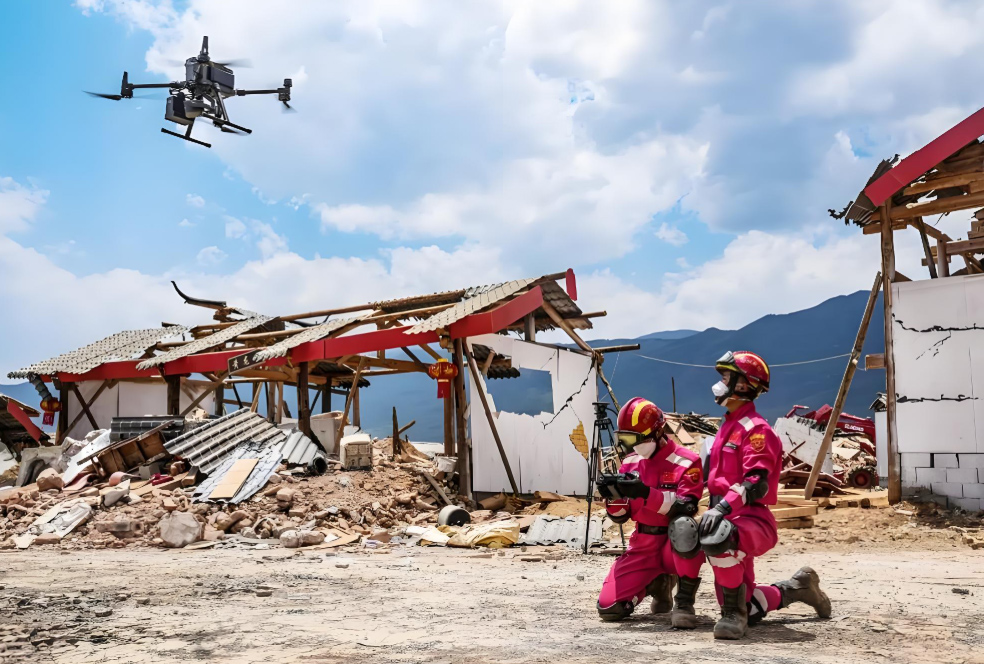

Earthquake and Disaster Relief

When roads and landing areas are blocked by damaged infrastructure, drones can place emergency supplies close to trapped people or rescue teams. Typical payloads include first-aid kits, communication devices, monitoring equipment, emergency lighting and compact tools.

Fire and Public Safety Support

Emergency response teams can use the winch to deliver communication devices, sensors, ropes, protective equipment and other unmanned payloads to designated locations. The UAV operator must maintain safe clearance from heat, smoke, structures and power lines.

Remote Medical Supply Delivery

The system can lower medical kits and other time-sensitive supplies to isolated clinics, emergency teams or communities without requiring the UAV to land. Temperature-sensitive products must still use qualified transport containers and follow applicable medical and cold-chain requirements.

Emergency Rescue Drone Winch Selection

The winch should not be selected by cargo weight alone. Buyers need to consider the combined weight of the winch body, release device, mounting components, rope and actual rescue payload.

Maximum winch load is not the same as the UAV’s usable mission payload. Aircraft endurance, winch weight, release-device weight, altitude, temperature, wind and suspended-load shape can reduce the practical carrying capacity. A suitable safety margin should be retained instead of operating continuously at the theoretical maximum.

UAV and Ground Station Integration

Emergency response organizations and system integrators may use different UAV platforms, flight controllers and command systems. The XD Series supports several control options so that the winch can be operated independently or integrated into a larger unmanned system.

Available control options include:

• ·   Handheld remote control

• ·   SBUS control

• ·   PWM control

• ·   Optional RS232/RS422 communication

• ·   Optional CAN communication on applicable models

• ·   Third-party ground station development

Before ordering, please provide the UAV model, available payload, mounting space, power supply voltage, flight controller and required communication interface.

For custom integration projects, buyers should also confirm the required command format, interface voltage, feedback data, pin definition and manual override requirements.

Select the Appropriate Payload Release Method

Available safety and rope-management functions vary by model and may include:

• ·   One-touch lifting and lowering

• ·   Ground-contact automatic unhooking

• ·   Emergency rope cut-off

• ·   Anti-reverse or anti-twist rope design

• ·   Automatic rope arrangement

• ·   Upper and lower limit stopping

• ·   Payload weight warning

• ·   Power-off braking

• ·   Real-time tension monitoring

• ·   Payload swing detection

• ·   Night navigation lights

The required safety functions should be confirmed before ordering because not every function is included in every model or release configuration.

Project and Integration Support

◆ Pre-Sales Technical Evaluation: We evaluate the UAV model, available payload, mounting space, rope length, power supply and control interface before recommending a winch configuration.

◆ Custom Integration Support: Mounting interfaces, communication methods, release devices and ground station control requirements can be coordinated according to the UAV platform.

◆ Configuration Confirmation: The winch body, release mechanism, rope specification, electrical interface and control method are confirmed before production.

◆ Installation and Testing Guidance: Technical support is available for installation, control configuration, ground testing and initial system integration.

◆ Global Project Support: Product documentation, operating guidance, troubleshooting assistance and after-sales communication are available for international UAV manufacturers, integrators and rescue equipment buyers.

Important Safety Notice

NEW WING emergency rescue drone winches are designed for unmanned cargo, rescue equipment and emergency supply delivery. They should not be used or promoted as personnel-lifting winches unless a system has been specifically engineered, tested and certified for human lifting under applicable regulations.

The UAV integrator and operator are responsible for aircraft payload calculation, system integration, flight approval, operating procedures and mission safety.

Frequently Asked Questions

What is an emergency rescue drone winch?

An emergency rescue drone winch is a UAV-mounted system that lowers rescue supplies or equipment from a hovering drone. It allows the UAV to deliver cargo without landing in an obstructed, flooded or unsafe area.

Which model is suitable for lightweight medical supplies?

The XD-10 is suitable for many medical kits, radios, flotation devices and compact emergency packages. Final selection depends on the complete payload weight, release-device weight, UAV capacity and required safety margin.

Can the winch be integrated into a ground control station?

Yes. Available interfaces include SBUS, PWM, RS232/RS422 and optional CAN communication on applicable models. The exact interface and control requirements should be confirmed before ordering.

Can the payload be released without personnel on the ground?

Depending on the configuration, a smart auto-release device or ground-contact automatic unhooking device can support unattended delivery.

Can the winch retrieve a payload?

The system can raise and lower cargo, but the attachment and release mechanism must match the retrieval process. Buyers should provide the payload shape, pickup method and operating conditions for evaluation.

How should we select the winch load capacity?

Calculate the combined weight of the rescue cargo, release device, mounting hardware and winch. The UAV should retain sufficient payload and flight-performance margin under the expected altitude, temperature and wind conditions.

Can the mounting and control interfaces be customized?

Mounting interfaces, power connections, communication methods and release configurations can be coordinated for different industrial UAV platforms.
