Drone Cargo Winches in Construction

Application Scenarios, Technical Limitations and Optimization Strategies of Drone Cargo Winches in Construction

1. Practical Application Scenarios on Construction Sites

1.1 Emergency Material Delivery for Super High-Rise Buildings

For super high-rise buildings with a height of over 200 meters, construction elevators are often suspended for routine maintenance or sudden malfunctions. In such emergency scenarios, drone cargo winch systems can quickly deliver maintenance tools, fire emergency supplies and small repair parts to designated floors through hovering and rope-lowering operations. Different from the traditional direct cargo mounting mode of drones, the winch allows cargo delivery while keeping the drone at a safe distance from building facades, which thoroughly avoids collision risks with building walls and attached structural components.

1.2 Construction in Mountainous and Complex Terrain

Mountainous highway construction, bridge pier engineering and wind power foundation projects are typically characterized by scattered working faces and inaccessible road conditions for conventional engineering vehicles. Drone winch systems are capable of transporting cement test samples, fastening parts and testing equipment across multiple dispersed operation points over a wide range. This innovative transportation method replaces manual long-distance climbing and material handling, effectively reducing personal safety risks for construction workers operating in complex and rugged terrains.

1.3 Renovation and Maintenance of Existing Buildings

For facade renovation, external wall insulation construction and curtain wall maintenance of completed buildings, tower cranes are generally dismantled after the main construction phase. Medium and small heavy-lift drones equipped with cargo winches can realize vertical transportation of exterior wall coatings, hanging basket accessories and professional testing instruments. Compared with erecting temporary lifting supports and hoisting frames, the drone winch solution boasts lower deployment costs and stronger operational flexibility, making it highly suitable for building renovation and maintenance scenarios.

1.4 Daily Auxiliary Logistics on Construction Sites

Drone winch systems can undertake regular and quantitative delivery tasks of surveying instruments, temporary circuit accessories, waterproof repair materials and other conventional supplies for high-altitude construction surfaces. This intelligent logistics mode significantly reduces the waiting time for tower crane scheduling, relieves the operational pressure of traditional vertical transportation equipment, and effectively improves the utilization rate and turnover efficiency of large construction machinery on site.

2. Existing Practical Difficulties and Technical Limitations

Limited Effective Payload: At present, mainstream civil heavy-lift drones matched with cargo winch systems have a safe effective load ranging from 50 to 100 kilograms. Such load capacity is only applicable to small and medium-sized bulk construction materials, which cannot meet the hoisting requirements of heavy building components and thus cannot replace tower cranes in core heavy-load operation scenarios.

Poor Adaptability to Harsh Environments: Severe weather conditions including strong winds, heavy rainfall and thunderstorms will seriously interfere with the hovering stability of drones and reduce the accuracy of cargo positioning and delivery. This defect greatly limits the system’s working adaptability and makes all-weather continuous construction operation impossible.

Potential Safety Management Risks: Non-standard hook locking operation, long-term abrasion of steel cables and human operational errors are likely to trigger cargo falling accidents and cause construction safety hazards. In addition, the construction industry has not yet formed unified industrial specifications and access standards for drone winch operation, resulting in irregular on-site management.

Battery Endurance Constraints: Heavy-load hoisting operation will sharply increase the power consumption of heavy-lift drones, leading to a significant reduction in single-flight endurance time. The limited battery endurance restricts the continuous and batch transportation capacity of the system, limiting its large-scale promotion in high-intensity construction scenarios.

3. Optimization Strategies for Engineering Promotion

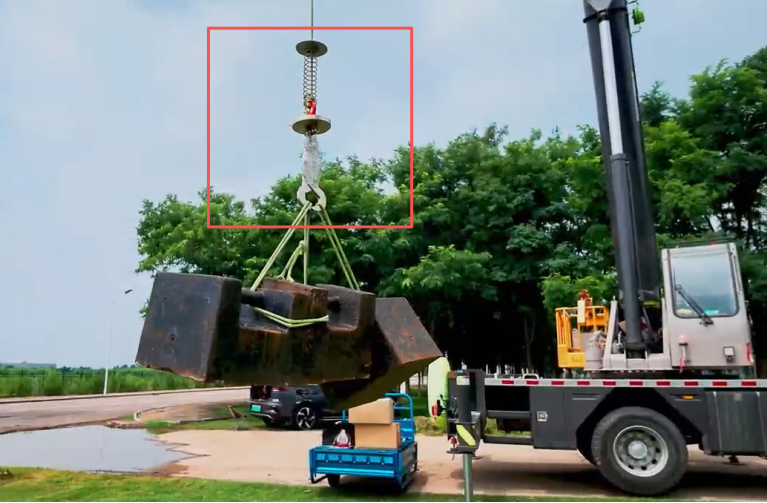

(1)Integrated Winch-Buffer Structural Upgrade:

To adapt to multi-grade load requirements, variable-stiffness composite springs are adopted to optimize the buffer structure. Miniature tension sensors are embedded in the buffer assembly to realize real-time transmission of stress data to the drone flight control system, constructing an active-passive combined composite damping control system to eliminate instantaneous impact load effectively.

(2) Formulate Standardized On-Site Flight Management Specifications:

Fixed professional flight routes are delineated on construction sites, and electronic geofencing technology is deployed to restrict drone access to high-risk areas such as tower crane operation radii and high-voltage power distribution zones. Meanwhile, a real-name certification and licensed operation system for operators is implemented to standardize on-site flight management.

(3) Optimize Intelligent Control Algorithms:

A dedicated payload swing suppression algorithm is integrated into the drone flight control program. By linking the winch retraction and release speed with drone attitude adjustment, the system can actively suppress cargo oscillation caused by airflow disturbances and effectively improve the stability and accuracy of aerial cargo delivery.

(4) Deploy Ground Fast Battery Replacement Stations:

Special battery replacement stations are arranged around construction operation areas to compensate for the insufficient endurance of drones under heavy-load flight conditions. This measure solves the bottleneck of discontinuous operation and greatly improves the overall logistics transportation efficiency of drone winch systems.

4. Conclusion

The spring-buffered drone cargo winch system studied in this paper effectively solves the technical bottleneck of instantaneous impact load in aerial hoisting operations, significantly improving the practicability and operational safety of drone-based vertical material transportation in construction scenarios. As a flexible and auxiliary transportation method rather than a substitute for traditional hoisting equipment, this system can effectively optimize on-site material distribution efficiency, reduce the labor intensity of manual high-altitude transportation, and avoid idle resource waste of large tower cranes. With the continuous upgrading of heavy-lift drone hardware performance, the gradual maturity of intelligent winch control technology, and the continuous improvement of on-site safety management systems, drone cargo winch aerial transportation will become a standardized auxiliary logistics mode in the modern construction industry, providing new development space for refined and efficient construction site management.
